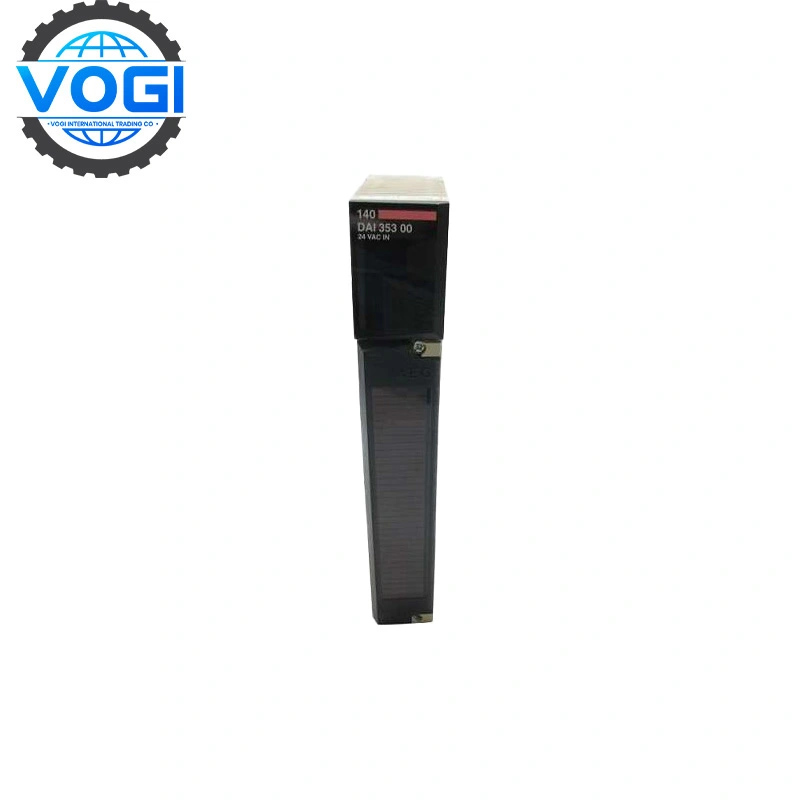

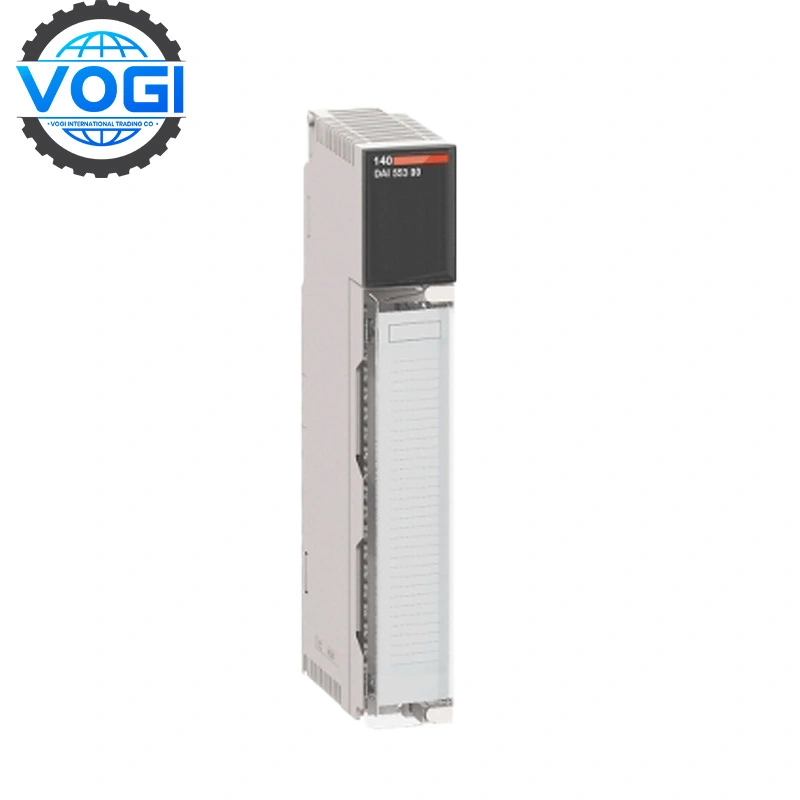

Schneider 140DAI35300 discrete input module Modicon Quantum

Main

Software name

ProWORX 32
Concept
Unity Pro

Discrete input number

32

Complementary

Group of channels

4

Addressing requirement

2 input words

Discrete input voltage

24 V AC

Input current

11.1 mA 57...63 Hz

13.2 mA 47...53 Hz

Voltage state 1 guaranteed

12...30 V AC 57...63 Hz

14...30 V AC 47...53 Hz

Voltage state 0 guaranteed

0...5 V 57...63 Hz

0...5 V 47...53 Hz

Input impedance

2600 Ohm capacitive 57...63 Hz

3100 Ohm capacitive 47...53 Hz

Network frequency limits

47…63 Hz

Maximum leakage current

1.9 mA

Absolute maximum input

30 V continuous

32 V 10 s

50 V 1 cycle

Response Time

4.9...0.75 ms x line cycle Off-On

7.3...12.3 ms On-Off

Isolation between group

1780 Vrms for 1 minute

Isolation between group and bus

1780 Vrms for 1 minute

Bus current requirement

250 mA

Maximum power dissipation in W

10.9 W

Local signalling

for bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

Resistance to electrostatic discharge

4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient air temperature for operation

32…140 °F (0…60 °C)
