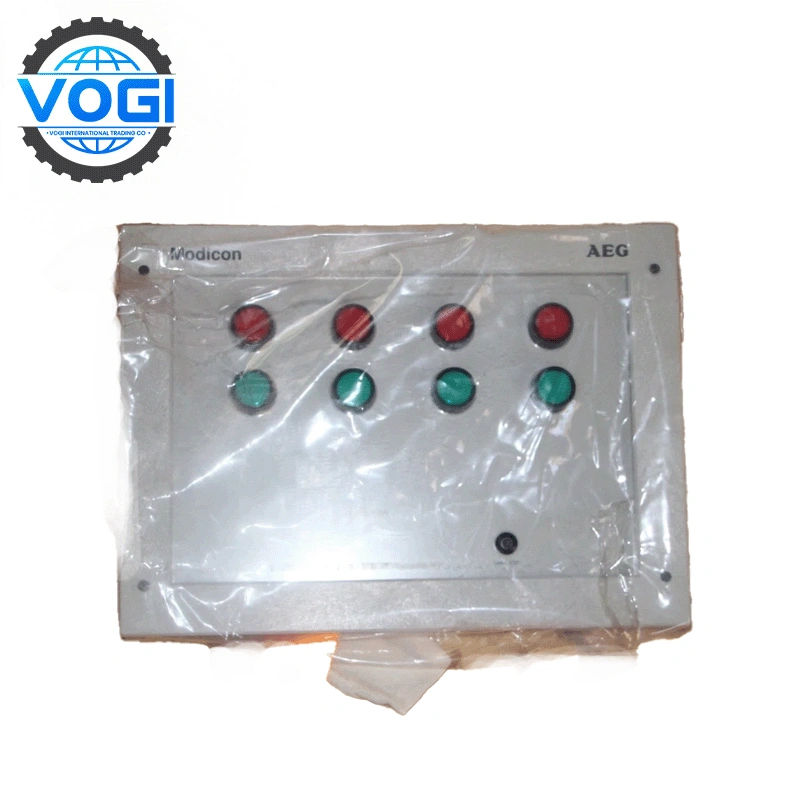

Schneider Modicon MM-08MP-001 Element Operator Panel
| Brand | Schneider Modicon |
| Module Number | MM-08MP-001 |
| Unit Price | $500 |
| Country Of Origin | USA |
| Weight | 0.86kg |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 2 |
Schneider Electric’s Modicon MM-08MP-001 is a compact hybrid I/O module designed for Modicon M221/M241 PLCs. It provides a combination of four analog inputs and four digital outputs.
Schneider Modicon MM-08MP-001 Key parameters
|
Parameter |
Specification |
|
Product Reference |
Schneider Modicon MM-08MP-001 |
|
Type |
Relay Output Module |
|
Number of Channels |
8 |
|
Output Type |
SPDT Relay (Form A) |
|
Contact Rating |
5 A @ 250V AC / 5 A @ 30V DC |
|
Max. Switching Voltage |
250V AC / 30V DC |
|
Max. Switching Current |
5 A resistive |
|
Electrical Isolation |
1500V AC channel-to-bus, 1500V AC channel-to-channel |
|
Response Time |
≤10 ms (On/Off) |
|
Mechanical Durability |
10,000,000 operations |
|
Electrical Durability |
100,000 operations (5A @ 250V AC) |
|
Power Consumption |
1.8W (max) |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Schneider Modicon MM-08MP-001 Key Features
High Load Driving Capacity: The Schneider Modicon MM-08MP-001's relay contacts can directly switch AC/DC loads up to 5A, simplifying circuit design for driving contactors or high-power devices.
Strong Electrical Isolation: The module provides up to 1500V AC electrical isolation between channels and between channels and the bus. The Schneider Modicon MM-08MP-001 effectively suppresses interference from industrial sites and ensures system safety.
Compact and Reliable Design: It mounts on a DIN rail, measuring only 45mm wide. With a mechanical lifespan of up to 10 million cycles, the Schneider Modicon MM-08MP-001 is ideal for compact control cabinets with limited space.
Schneider Modicon MM-08MP-001 application cases
North American logistics center sorting system uses numerous Schneider Modicon MM-08MP-001 modules to control the start and stop of conveyor belt motors and pneumatic sorting actuators. Their high contact capacity and anti-interference capabilities ensure 24/7 continuous operation.
European food packaging machinery: In an automated biscuit packaging line, the Schneider Modicon MM-08MP-001 directly drives the sealing heater and conveyor motor. Its compact design fits within the equipment's limited electrical cabinet space.
