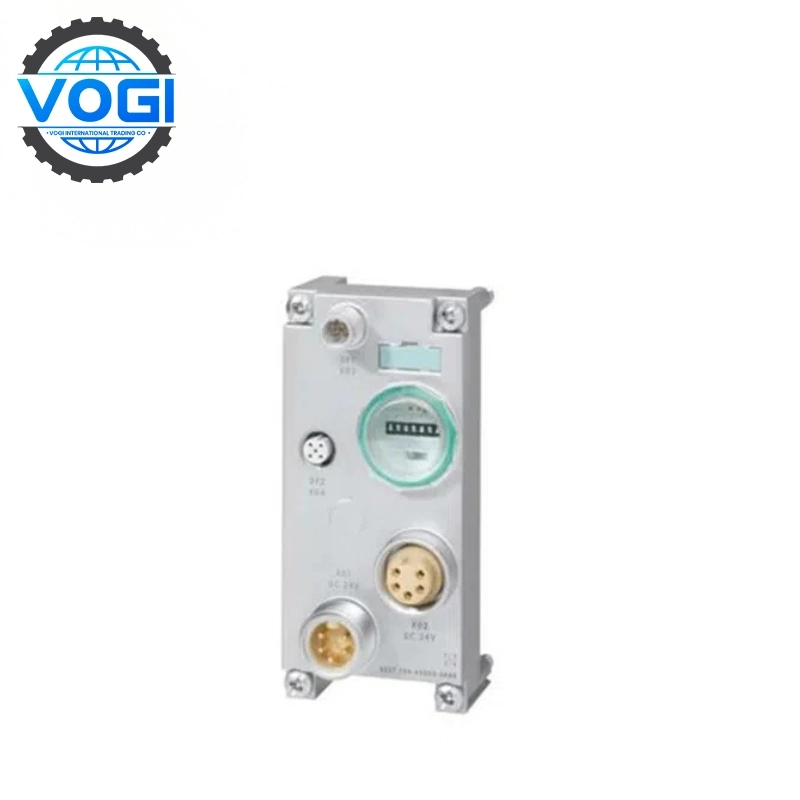

SIEMENS 6ES7194-4AD00-0AA0 SIMATIC DP Connecting Module
| Brand | Siemens |
| Module Number | 6ES7194-4AD00-0AA0 |
| Unit Price | $900 |
| Country Of Origin | Germany |
| Weight | 0.45KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 2 |
Siemens 6ES7194-04AD00-0AA0 is a PROFIBUS DP connection module dedicated to the ET200pro system. It integrates 2×M12 and 2×7/8″ interfaces and can transmit communication and 24V power supply at the same time.
Siemens 6ES7194-4AD00-0AA0 Specifications:
|
Item |
Specifications |
|
Part Number |
6ES7194-4AD00-0AA0 |
|
Description |
SIMATIC DP Connection Module for ET 200pro DP interface; 2×M12 & 2×7/8″ ports |
|
System Compatibility |
IM 154‑1 / IM 154‑2 DP (ET 200pro) |
|
Voltage Range |
20.4 – 28.8 V DC |
|
Input Current (1L+ / 2L+) |
Max 8 A each |
|
PROFIBUS Rate |
Standard DP rates via integrated bus termination |
|
Terminating Resistor |
Integrated with slide switch |
|
Address Setting |
Integrated rotary switch |
|
Connectors |
2×M12 + 2×7/8″ |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Comparison with similar models
|
Feature |
6ES7194-4AD00-0AA0 |
6ES7194-4AC00-0AA0 |
|
Connectors |
2×M12 & 2×7/8″ |
4×M12 only |
|
Voltage (DC) |
20.4–28.8 V |
20.4–28.8 V |
|
Input I (max) |
2×8 A |
2×8 A |
|
Termination |
Integrated |
Integrated |
Siemens 6ES7194-4AD00-0AA0 Key Features
Efficient Backplane Bus Extension: Siemens 6ES7194-4AD00-0AA0 excels at extending backplane bus connections in modular systems. A machinery plant in Sweden used it to link 8 remote I/O modules to the main controller, covering a 10-meter distance without signal loss. Previously, their setup required bulky junction boxes that cluttered the workshop; now, the module’s streamlined design keeps wiring tidy, reducing maintenance time by 30%.
Wide Compatibility with S7-1500 Series: Designed for seamless integration with Siemens S7-1500 PLCs, Siemens 6ES7194-4AD00-0AA0 works flawlessly with various digital and analog modules. A packaging factory in France added 4 new temperature sensing modules to their existing system using this module, avoiding the need for software updates or hardware modifications. Its plug-and-play functionality made the upgrade process 50% faster than anticipated, with zero downtime during installation.
