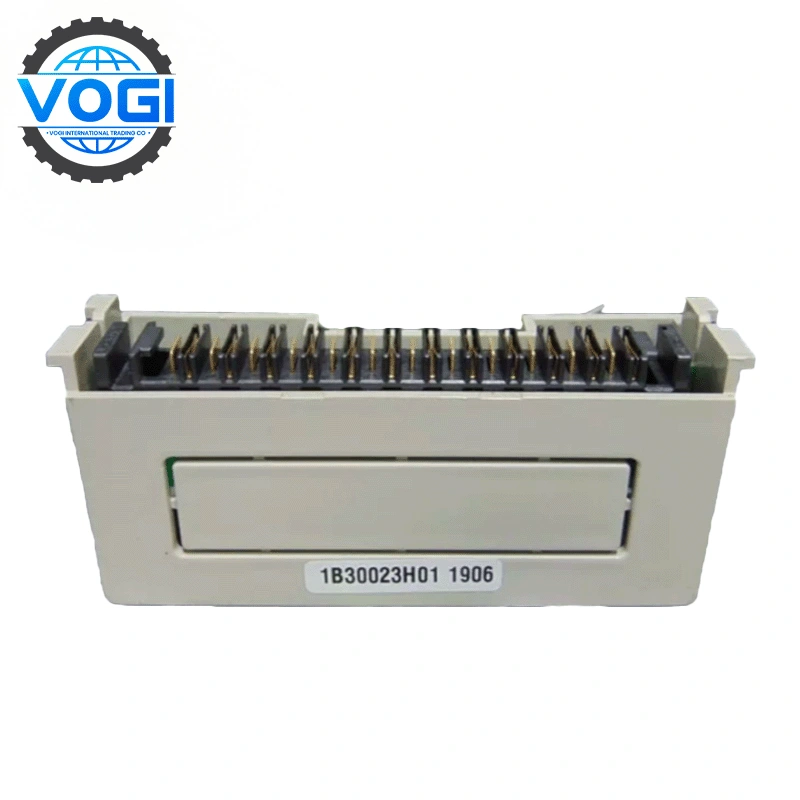

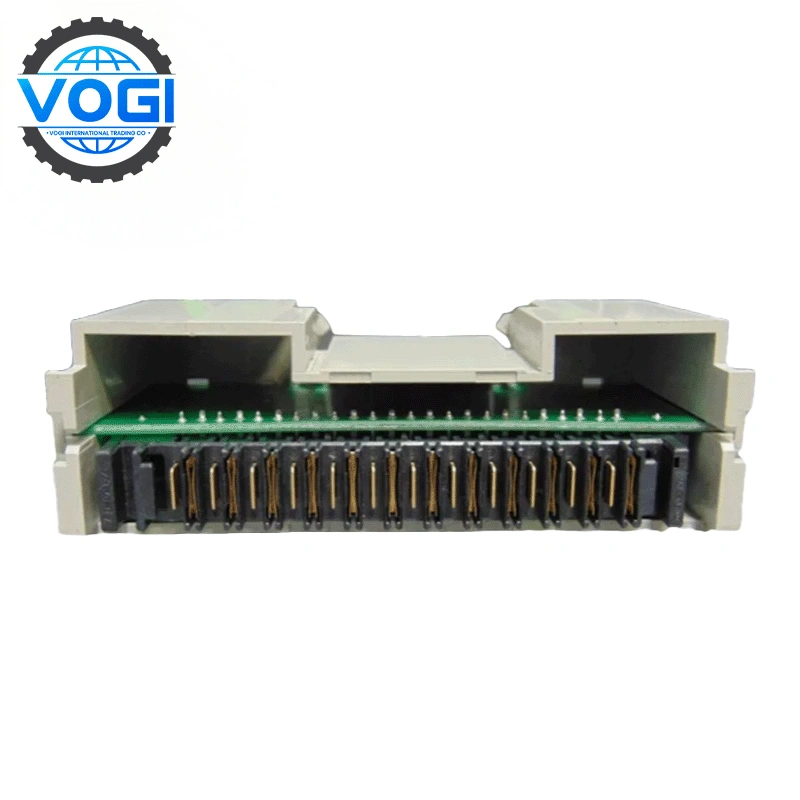

Westinghouse 1B30023H01 Core Function
Advanced Signal Stabilization
Designed to terminate 12-pin I/O bus segments in Emerson Ovation systems, this module employs damped impedance matching to absorb excess electrical noise and mitigate signal reflections. This ensures stable communication between distributed controllers and field devices, reducing data packet collisions in high-density networks like power grid substations or refinery control systems .
Diagnostic Precision and Fault Protection
Integrated LED status indicators provide real-time monitoring of bus termination integrity. Overvoltage and short-circuit protection circuits suppress transient surges up to ±2.5 kV, while self-diagnostic routines detect misconfigurations or line faults, logging anomalies for proactive maintenance .
Compatibility and Modular Integration
Supports multiple industrial bus standards, including legacy RS-485 and modern Ethernet-based protocols. As a certified component of Ovation DCS architectures, it pairs seamlessly with modules like the 1B30035H01 termination base and 1C31238H01 compact digital input units, enabling scalable redundancy configurations .
