Westinghouse 1C31233G04 Contact Input Module

Brand	Westinghouse
Module Number	1C31233G04
Price	$400
Country Of Origin	United States
Weight	0.8kg
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

Description

Westinghouse 1C31233G04 Key parameters

Voltage & Power Requirements

Operates on 48V DC (±10% tolerance) with reverse polarity protection, ensuring stability in unstable grid conditions. Consumes ≤5W under peak load, minimizing heat output for dense control panel installations.

Signal Handling Capabilities

Processes 16-bit analog inputs (0-10V/4-20mA) and digital signals (dry contact/24V sinking/sourcing), featuring 1500V optical isolation to prevent ground loop interference in multi-device setups.

Environmental Resilience

Rated for -40°C to +70°C operational range, compliant with IEC 60068-2 shock/vibration standards. Non-corrosive conformal coating protects against humidity (5-95% non-condensing) and airborne particulates.

Control System Integration

Backward-compatible with legacy Westinghouse PROCONTROL P14 racks via 9-pin D-sub connectors. Supports Emerson Ovation DCS v3.5+ without requiring firmware upgrades.

Event Logging & Diagnostics

Embedded timestamping (±1ms accuracy) for SOE records, with RS-485 MODBUS RTU protocol for real-time diagnostics. LED status indicators (power/communication/fault) enable rapid field troubleshooting.

Supply Chain & Compliance

Manufactured under ISO 9001:2015-certified processes. Worldwide availability via Singapore/Chicago hub warehouses, with RoHS 3/REACH SVHC documentation provided for EU import compliance.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Details

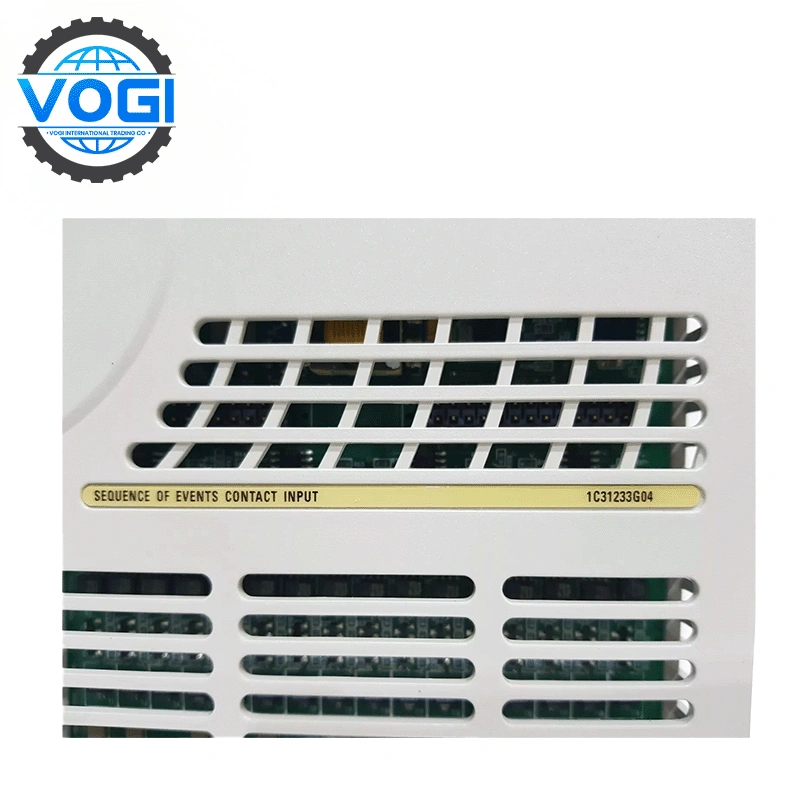

Westinghouse 1C31233G04 Contact Input Module

Description	Value
Number of channels	16
On board auxiliary power supply	42 V minimum 55 V maximum
Signal rejection Always rejects contact change of state Always accepts contact change of state	< 3.87 mSec > 4.13 mSec
Propagation delay of contact change of state	3.75 mSec minimum; 4.4 mSec maximum
Closed contact output current	4 mA minimum 8 mA maximum
Diagnostics	Internal module operating faults Ground Fault Detection
Dielectric isolation: Channel to logic	1000 VAC
Module power from logic supply	4.56 W typical (all inputs on) 5.0 W maximum
Operating temperature range	0 to 60°C (32°F to 140°F)
Storage temperature range	-40°C to 85°C (-40°F to 185°F)
