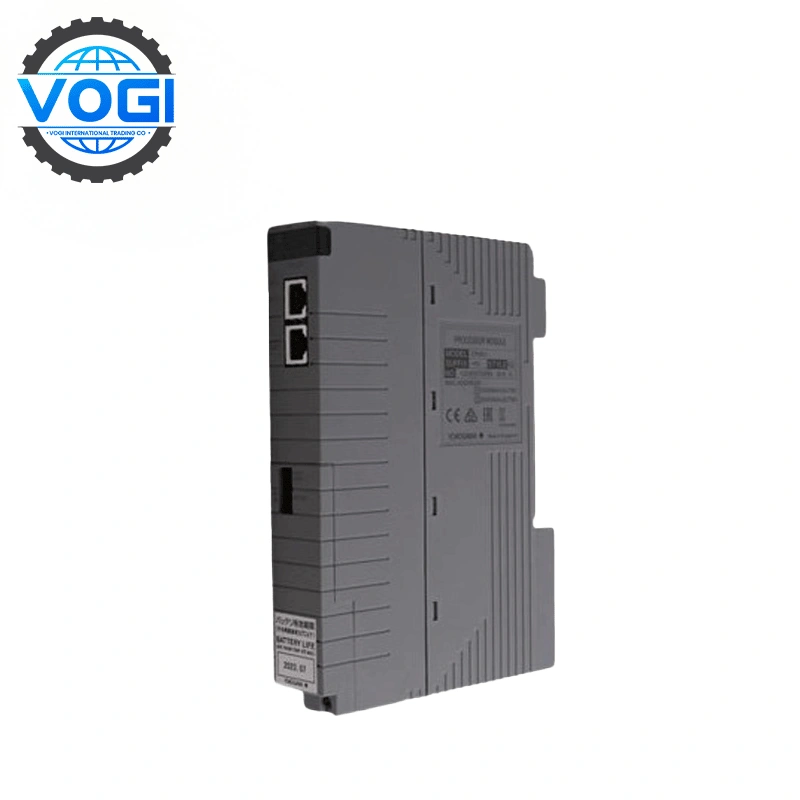

Yokogawa CP471-00 Processor Module

Brand	Yokogawa
Module Number	CP471-00
Price	$500
Weight	0.8kg
Country Of Origin	Japan
Certificate	Certificate: C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

Yokogawa CP471-00 Key parameters

Core Functionality & Compatibility

Integration: Functions as a modular CPU for CENTUM VP distributed control systems (DCS), compatible with field control units AFV30S/D, AFV40S/D, A2FV50S/D, A2FV70S/D, and base plate A2BE1D.

Redundancy: Supports dual-redundant configurations for mission-critical processes, enabling automatic failover without system downtime.

Protocols: Integrates PROFIBUS DP and PROFINET IO for industrial automation, facilitating real-time communication with actuators and sensors.

Electrical & Environmental Resilience

Power Requirements: Operates on 12–48 V DC input, delivering 5 V DC output with a maximum current of 10 A (efficiency >90%).

Temperature Range:

Operating: -20°C to +50°C (extendable to -40°C with G3 option suffix /1).

Storage: -40°C to +70°C.

Humidity Tolerance: 5–95% RH (non-condensing), suitable for coastal or chemically aggressive environments.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

一．Yokogawa CP471-00 Core Function

Adaptive Protocol Integration and Synchronization

Yokogawa CP471-00 is Equipped with dual 100BaseT Ethernet ports and 12 RS-232/422/485 interfaces, the module supports PROFIBUS DP and PROFINET IO for real-time device communication . An optional IRIG-B synchronization module ensures millisecond-level timing accuracy (±10 µs) for grid synchronization or turbine control tasks. Baud rates range from 1,200 to 115,200 to accommodate legacy sensors and modern HART-enabled actuators .

High-Capacity Memory and Real-Time Data Handling

Featuring 256 MB DRAM and 16 GB flash memory,Yokogawa CP471-00 executes complex control algorithms with a deterministic real-time operating system. Data logging achieves 1 ms resolution for timestamped events, storing up to 4,000 entries in its SOE buffer for forensic analysis of anomalies .

Modular Maintenance and Environmental Resilience

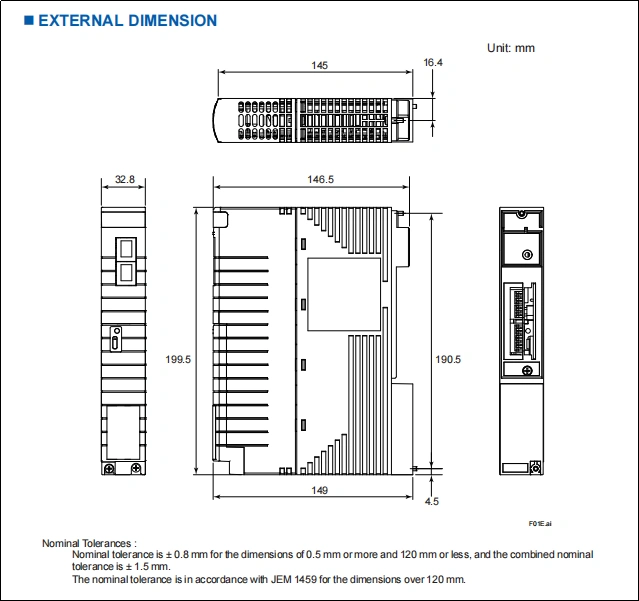

The CP471-00’s hot-swappable design allows online replacement without system downtime, enabled by ESB bus coupler module EC401 (style code S3 or later) . Its compact chassis (170 × 105 × 32 mm, 1.2 kg) operates in -20°C to +50°C with 95% non-condensing humidity tolerance, making it suitable for offshore drilling rigs or desert-based power plants.
