ABB 5STP18F1800
| Brand | ABB |
| Module Number | 5STP18F1800 |
| Unit price | $100 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 1.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 3 |
ABB 5STP18F1800 is 5STP series comprises flat-pack phase-control thyristors, commonly known as SCRs (Silicon Controlled Rectifiers).
For the model 5STP18F1800, the prefix "5STP" designates the ABB phase-controlled thyristor series;
"18" represents the current rating; "F" is the package/construction code; and "1800" indicates the voltage rating (1800 V)—this constitutes the model naming convention.
Technical specifications are as follows:
Repetitive peak off-state/reverse voltage (VDRM/VRRM): 1800 V
Average on-state current IT(AV)M (Tc=70°C): 1660 A
RMS on-state current (ITRMS): 2610 A
Surge current (ITSM, 10 ms): 21000 A
On-state threshold voltage (VT0): 0.83 V
On-state resistance (rT): 0.230 mΩ
Maximum junction temperature (Tj max): 125°C

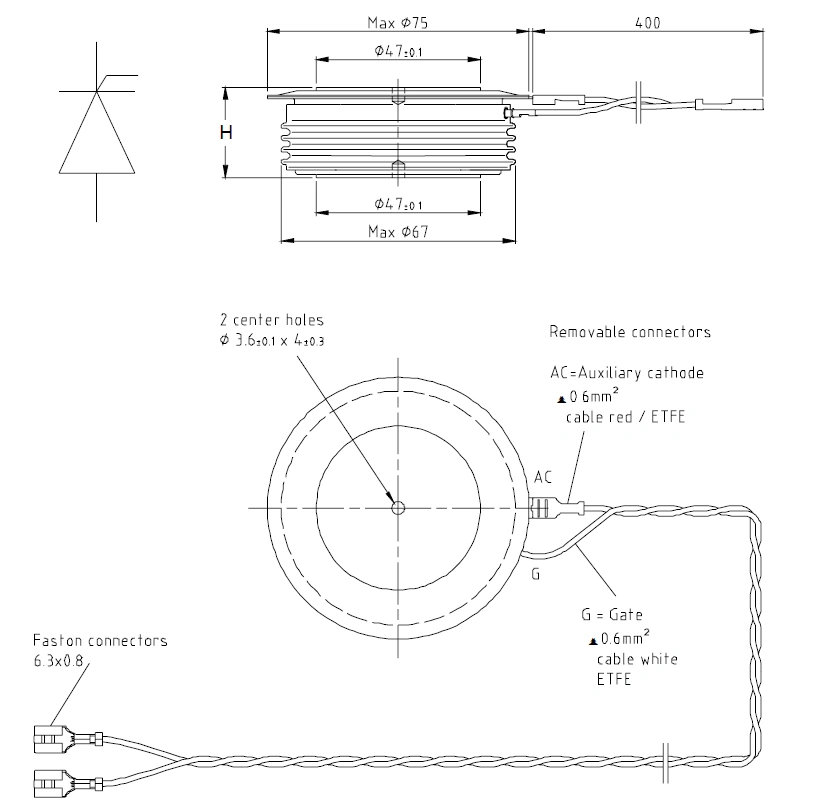

Package: Disc/Press-pack (pressure-contact type, double-sided cooling), with gate lead
Examples of typical applications for this product:
- High-power industrial rectifier cabinets and electrolysis power supplies
- Steel rolling, mining drive systems, and DC variable-speed drive units
- Medium-frequency power supplies, high-power UPS, and metallurgical power supplies
- Power converters and locomotive traction power supplies
