ABB 88QB03B-E GJR2393800R0100
| Brand | ABB |
| Module Number | 88QB03B-E |
| Order Number | GJR2393800R0100 |
| Unit price | $1599 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 0.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 3 |

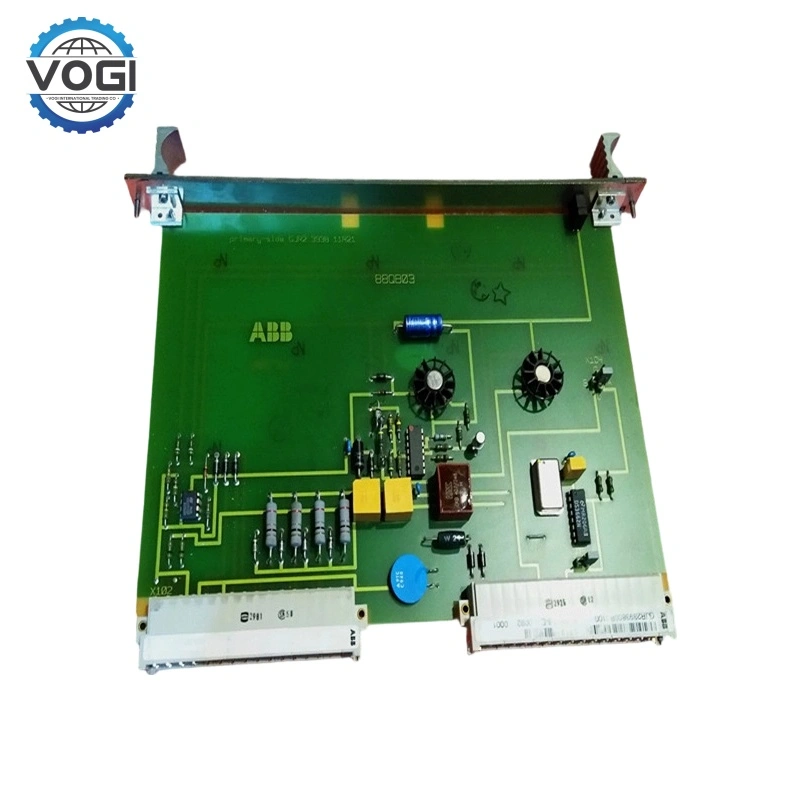

ABB 88QB03B-E GJR2393800R0100 is Bus Coupling Module
The module 88QB03-E/R0100 is always installed in the PRO-CONTROL cabinets 89MS01/R0100/R0200/R0300/R0400 and89MS02/R0100 in connection with module 88QT03-E/R2111.The module is required to installed directly on the right of the module 88QT03-E/R2111 seen from the front of the cabinet. Both modules shall be installed in a 24 V subrack.
Installation of the module in the subracks together with89NG03, i.e. 89MS01/R0100/R0200, BGT:D and 89MS01/R0300/R0400, BGT:G is not permissible(standard).
If in contrast with this standard further subracks are retrofit with89NG03 in these subracks, too installation of this module is not permissible.
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
What is the role of 88QB03B-E in the Procontrol P14
Bus terminal and signal guarantee: Its primary function is to act as the terminal of the bus, being installed at the end of the bus to match the impedance. This can effectively prevent signal reflection at the end when high-speed data transmission occurs, thereby ensuring stable and reliable data transmission throughout the entire bus and avoiding data confusion.
Connecting hubs and system expansion: It is usually used in conjunction with the 88QT03-E bus coupling module and is installed in the 89MS01 or 89MS02 chassis. It serves to connect multiple I/O modules and the shared bus, enabling the system to flexibly expand and integrate more devices.
Central clock pulse power supply: This module also provides central clock pulse power to the connected 88QT03 modules, which is crucial for the synchronous operation of the entire system.
Fault detection and system safety: The module has fault detection capabilities and can monitor the bus status. In case of power failures, signal interference, etc., the module can issue alerts through the LED indicators on the front panel (such as ST and SG) and notify the system to handle it in time to ensure safe operation.
