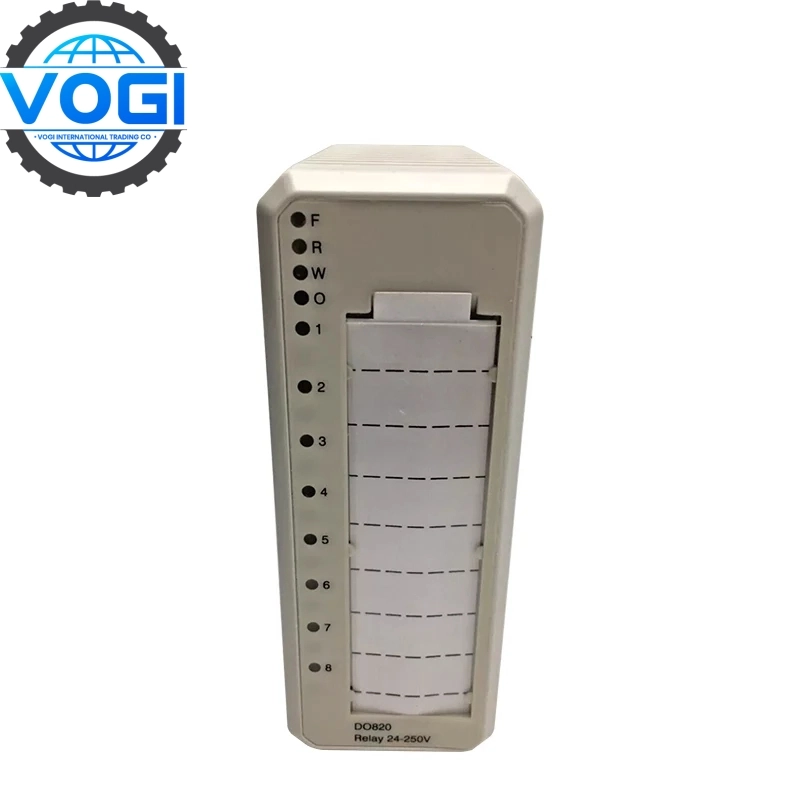

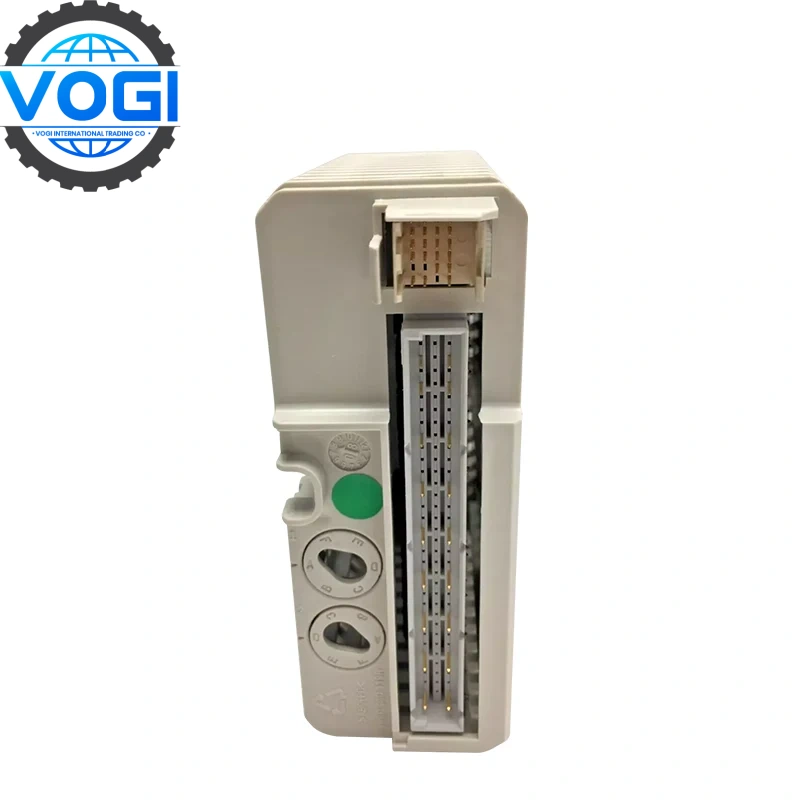

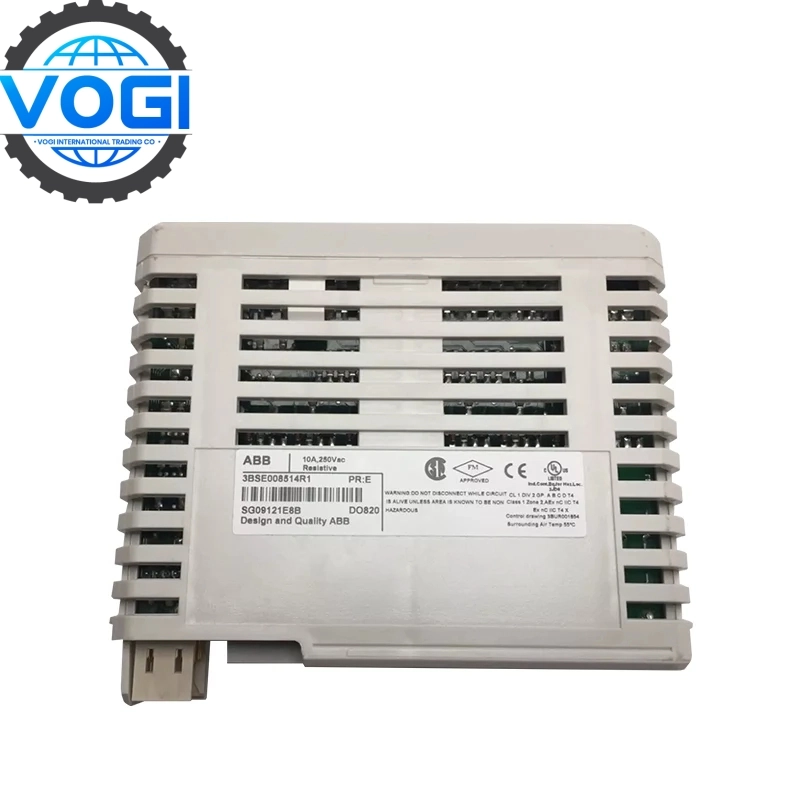

ABB DO820 3BSE008514R1 Digital Output Module
| Brand | ABB |
| Module Number | DO820 |
| Order Number | 3BSE008514R1 |
| Unit Price | $2000 |
| Country Of Origin | Switzerland |
| Weight | 0.32KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The ABB DO820 3BSE008514R1 is a high-performance digital output module designed for industrial automation and process control systems.
DO820 Key parameters
|
Parameter |
Specification |
|
Model |
DO820 3BSE008514R1 |
|
Type |
Digital Output Module |
|
Channels |
16 (configurable as sinking/sourcing) |
|
Output Voltage |
24V DC (±10%) |
|
Current per Channel |
0.5A (max) |
|
Isolation |
1500V AC (channel-to-channel and field-to-system) |
|
Communication |
S800 I/O Bus, compatible with 800xA/Symphony Plus |
|
Operating Temperature |
-40°C to +70°C |
|
Certifications |
CE, UL, ATEX, IEC 61000-6-2/4 (EMC) |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
DO820 Product FEAtures
The ABB DO820 offers high-density 16-channel output with flexible configuration (sinking/sourcing), reducing hardware footprint. Its galvanic isolation (1500V AC) ensures safety in harsh environments. The module supports hot-swapping, minimizing downtime during maintenance. With certifications like ATEX and IEC, the DO820 is ideal for explosive and high-interference areas.
DO820 Comparison
Compared to the DO810, the DO820 doubles channel density (16 vs. 8) and adds sourcing capability. However, the DO830 (32 channels) may suit larger setups but lacks the DO820’s wide temperature range. For legacy systems, the DSDO 110 is a lower-cost alternative but lacks 800xA compatibility. The DO820 balances performance and versatility, making it a preferred choice for mid-scale applications.
DO820application cases
The ABB DO820 is extensively deployed in offshore oil platforms (e.g., North Sea projects) due to its ATEX compliance. In power plants, it controls turbine auxiliaries and safety systems. European automotive factories use the DO820 for conveyor belt automation, leveraging its high noise immunity. Case studies highlight its reliability in Middle East water treatment plants, where it manages pump controls under extreme temperatures.
