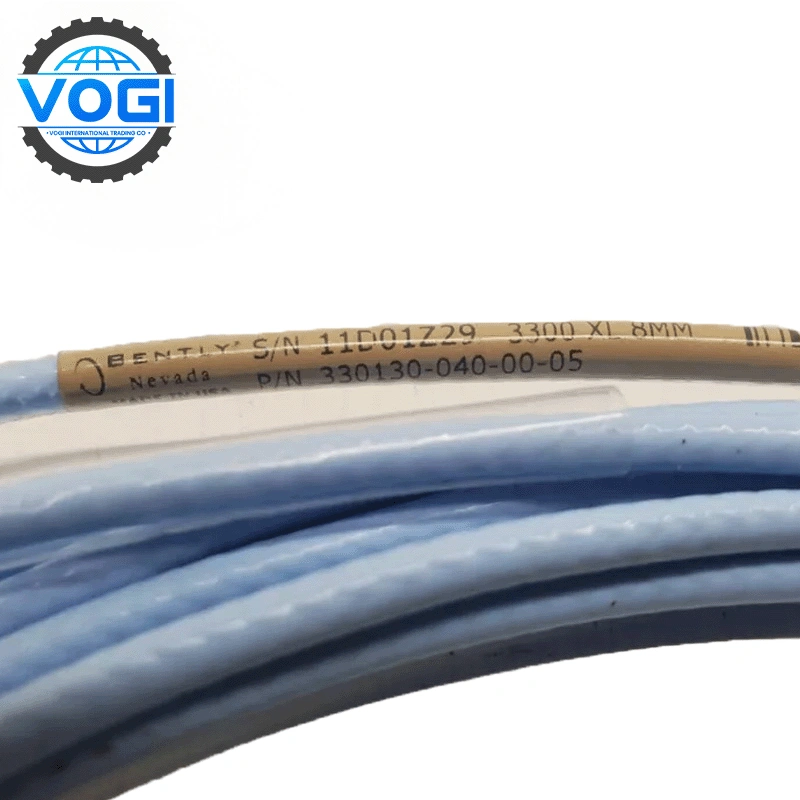

Bently Nevada 330130-040-00-05 Standard Extension Cable

Bently Nevada 330130-040-00-05 Standard Extension Cable

Brand	Bently Nevada
Module Number	330130-040-00-05 330130-040-00-00 330130-040-01-00 330130-040-02-00 330130-040-10-00 330130-085-00-00
Price	$350
Weight	0.3kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	30

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 330130-040-00-05 Key parameters

Power Needs: Requires 18-30 Vdc input for stable reading. Typical low draw under 10 mA.

Output Type: Gives a voltage signal scaled for probe gap. Standard -200mV/mil sensitivity connects directly to most monitors.

Probe Connection: Hardwired input accepts most 5mm or 8mm Bently proximity probe types securely. Cable resistance isn't critical for basic function.

Temp Rating: Handles harsh sites, rated for -40°C to +100°C operation without drift issues.

Output Accuracy: Holds within ±1% accuracy across its calibrated operating range for reliable trends.

Terminal Block: Uses industry-standard screw terminals for field power and signal hookup. Robust for vibration areas.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Model selection

Ordering Information for 330130-AAA-BB-CC

AAA: Cable Length Option
030	3.0 meters (9.8 feet)	070	7.0 meters (22.9 feet)
035	3.5 meters (13.1 feet)	075	7.5 meters (24.6 feet)
040	4.0 meters (11.5 feet)	080	8.0 meters (26.2 feet)
045	4.5 meters (14.8 feet)	085	8.5 meters (27.9 feet)
060	6.0 meters (19.7 feet)
BB: Connector Protector and Cable Option
00	Standard cable	10	FluidLoc cable
01	Armored cable	11	Armored FluidLoc cable
02	Standard cable with connector protector	12	FluidLoc cable with connector protector
03	Standard cable with connector protector	13	ArmoredFluidLoc cable with connector protector
CC: Agency Approval Option
00	Not required	05	CSA, ATEX, IECEx Approvals

Details

Feature	330130-040-00-05	330130-040-00-00	330130-040-01-00	330130-040-02-00	330130-040-10-00	330130-085-00-00
Cable Length	4.0 m (13.1 ft)	4.0 m (13.1 ft)	4.0 m (13.1 ft)	4.0 m (13.1 ft)	4.0 m (13.1 ft)	8.5 m (27.9 ft)
Cable Type	Standard	Standard	Armored	Standard + Connector Protector	FluidLoc (Oil-Blocking)	Standard
Hazardous Area Approvals	CSA, ATEX, IECEx (-05)	None (-00)	None (-00 implied)	None (-00 implied)	None (-00 implied)	None (-00)
Primary Differentiator	Hazardous Location Cert	Basic Standard Cable	Physical Armor	Connector Protection	Fluid Sealing	Extended Length
