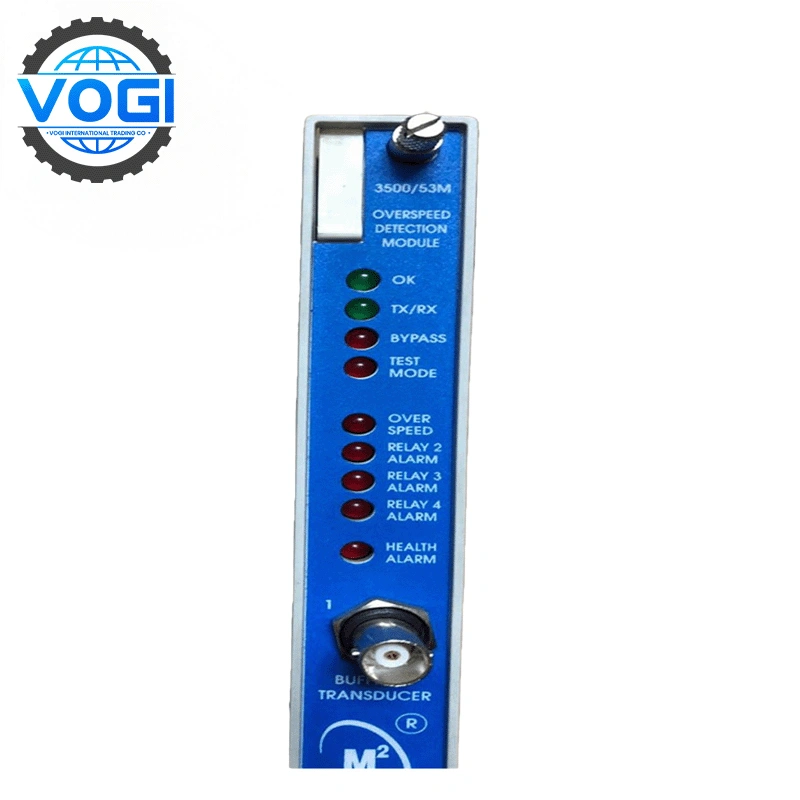

Bently Nevada 3500/53M Electronic OverSpeed Detection Module

Bently Nevada 3500/53M Electronic OverSpeed Detection Module

Brand	Bently Nevada
Module Number	3500/53M
Ordering Number	3500/53M
Price	$400
Weight	0.8kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	25

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 3500/53M Key parameters

Input Specifications

Signal Compatibility: Accepts inputs from proximity probes, magnetic pickups, or similar sensors, supporting signals within ±24V range .

Frequency Range: Processes input frequencies up to 20 kHz, with a minimum threshold of 0.0167 Hz (1 RPM for single-pulse-per-revolution setups) .

Threshold Adjustment: Configurable manual triggering thresholds (from -23.7V to +9.7V) and auto-trigger modes for signals above 0.0167 Hz .

Output & Control

Relay Configuration: Features SPDT relays rated for 5A/30V DC or 250V AC, with a lifespan exceeding 100,000 operations under standard loads .

Current Output: Provides a 4–20 mA analog output for external monitoring (not for speed control integration) and buffered transducer signals via front-panel connectors .

Voting Logic: Supports 2-out-of-2 or 2-out-of-3 voting architectures for redundancy, aligning with API 670 and 612 standards .

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 3500/53M Core Features

Core Monitoring Capabilities

Adaptive Input Handling: Processes signals from proximity probes (e.g., 3300/7200 series) or magnetic pickups, accommodating voltage ranges from ±10V to -24V with internal overload protection .

Dynamic Threshold Control: Offers manual adjustment (-23.7V to +9.7V) or auto-trigger modes for inputs exceeding 0.0167 Hz (1 RPM for single-pulse setups), ensuring precise overspeed detection .

Multi-Event Analysis: Supports up to 255 events per revolution, enabling high-resolution RPM tracking (0.0167 Hz to 20 kHz) with ±0.01% accuracy at high speeds .

Safety-Centric Architecture

Redundant Voting Systems: Configurable 2-out-of-3 voting logic (API 670/612-compliant) minimizes false shutdowns while maintaining fail-safe operation .

Reliability-Driven Outputs: SPDT relays rated for 5A/30V DC or 250V AC, featuring arc suppression and 100,000+ cycles under standard loads .

Isolated Analog Outputs: 4–20 mA recorder signals (non-control use) and buffered transducer outputs via front-panel BNC connectors, designed to prevent interference with primary shutdown systems.
