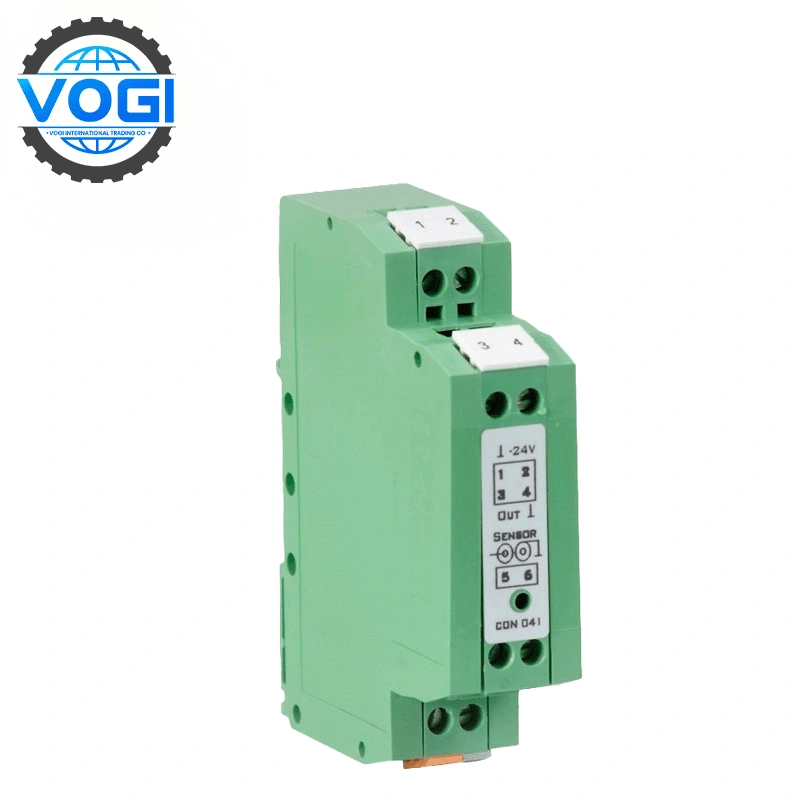

Epro CON041 Eddy Current Signal Converter

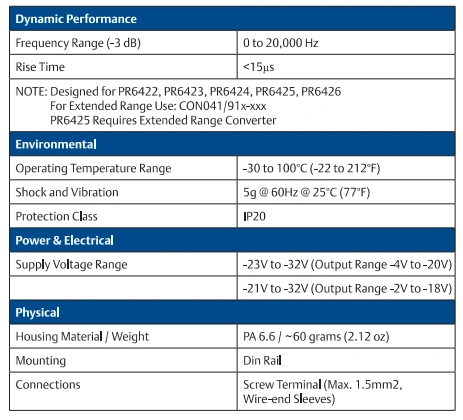

Epro CON041 Key parameters

Modular Integration & Sensor Compatibility

The CON041 integrates with MMS 6000 and IMR 6000 series racks (12TE width), occupying 2 slots in a 3U frame. It supports hot-swappable installation for maintenance-free operation and interfaces with PR6422/PR6423/PR6424/PR6425/PR6426 eddy current sensors for radial/axial shaft displacement, eccentricity, and speed monitoring. For extended-range applications, the CON041/91x-xxx variant enables measurements up to 12.0 mm with ≤1.5% linearity error when paired with PR6425/PR6426 sensors .

Dynamic Performance & Signal Conditioning

Frequency Range: 0–20,000 Hz, validated under IEC 68-2 standards for transient event detection.

Rise Time: <15 µs, enabling rapid response to machinery anomalies .

Signal Isolation: Galvanic isolation between sensor inputs, power supplies, and analog outputs (0–10 VDC or 0–8 mA) to prevent interference .

Power Management & Redundancy

Voltage Input: Supports dual ranges (-23V to -32V DC or -21V to -32V DC) with diode decoupling for stable operation during voltage fluctuations.

Output Flexibility: Configurable 0–10 VDC (fault-indicating 0 V) or 0–8 mA outputs for integration with PLCs/DCS systems.

Power Consumption: ≤6 W under full load, compliant with IEC 654-2 Class DC4 for energy efficiency.

Environmental & Mechanical Resilience

Operating Range: Functions at -30°C to 100°C and withstands storage/transport at -40°C to 85°C.

Shock/Vibration Resistance: Endures 98 m/s² shocks (16 ms duration) and vibrations up to 20 m/s² (55–150 Hz) per VDI 2056 standards .

Enclosure: IP20-rated PA 6.6 housing with DIN rail mounting and screw terminals.
