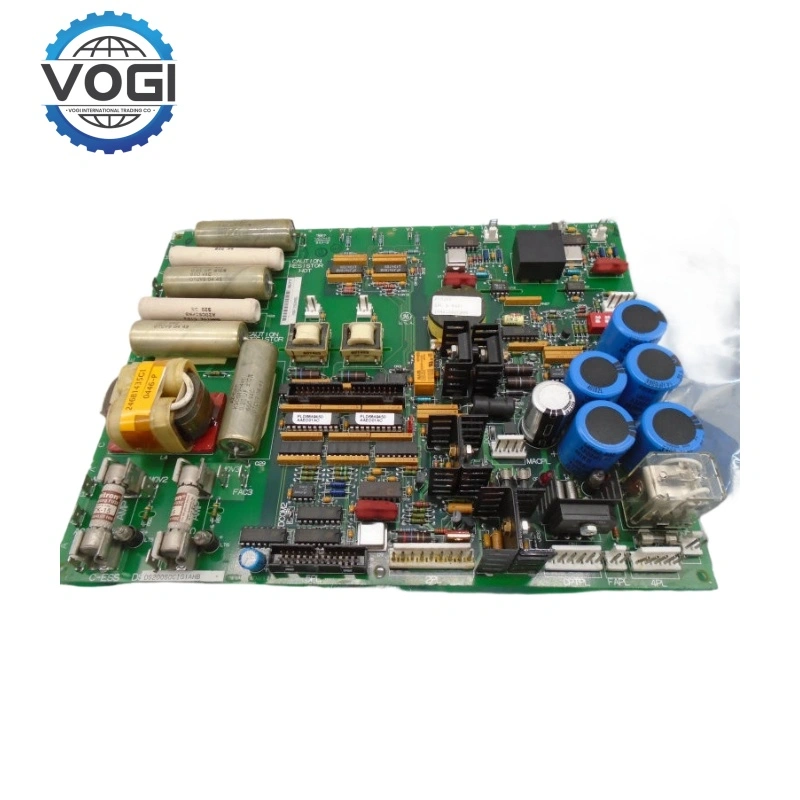

GE DS200SDCIG1AHB
| Brand | GE |
| Model Number | DS200SDCIG1A HB |
| Unit price | $2999 |
| Country Of Origin | USA |
| Weight | 1KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 3 |
GE DS200SDCIG1A is DC power supply and instrumentation board, it is belong to Mark V Speedtronic turbine control system
|
Power Circuits |
multiple output voltages including +5 VDC (4A), ±15 VDC (0.4A), ±24 VDC (0.4A), and 115 VAC (0.4A). |
|
Fuse configuration (FU1-FU6) |
FU1: Provide 115V AC power for 3TB. FU2: Protect the +24V, +15V, and +5V DC signal power supplies. FU3: Protect the -24V and -5V DC signal power supplies. FU5/FU6: For internal NRX 10A magnetic field and/or MOV components |
|
Hardware interfaces and components |
Version: G1 version SDCI board, featuring an internal exciter with a capacity of ≤ 10A. Cable connector type: Utilizes the Berg type manual movable cable connector. |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Key Features
High reliability design: As a key component of the Mark V Speedtronic turbine control system (used for gas, steam, and wind turbines), it features a well-stabilized power supply design and is equipped with a large number of fuses for circuit protection.
Modularization and Customizability: Multiple configurable hardware is onboard, allowing users to make adjustments according to specific applications:
JP1: MD Control Source Switcher.
JP2: MA AC contactor trip time jumper.
SW1: Select the switch for the AC line load based on the rated output current.
Enhanced diagnostic function: Each fuse (FU1-FU6) is equipped with an LED indicator light. When a fuse blows, the LED lights up, significantly simplifying the troubleshooting process.
Safety design considerations: The product manual provides clear safety check procedures (such as powering off and discharging before operation), embodying the industrial safety design concept.
Multifunctional integration: Integrates the interface, power supply and signal monitoring functions of the DC2000 driver into one unit.
