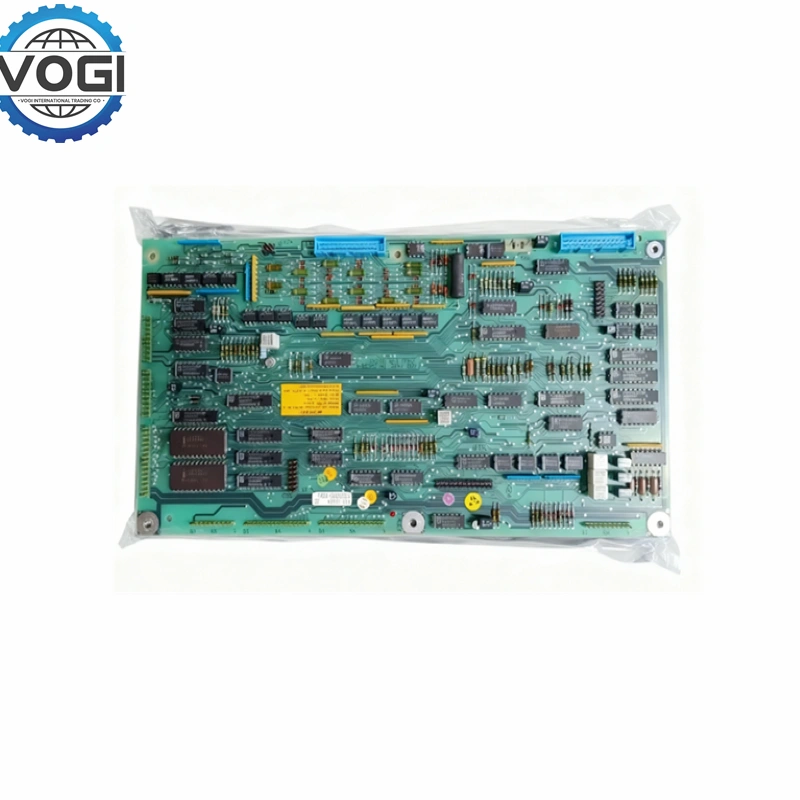

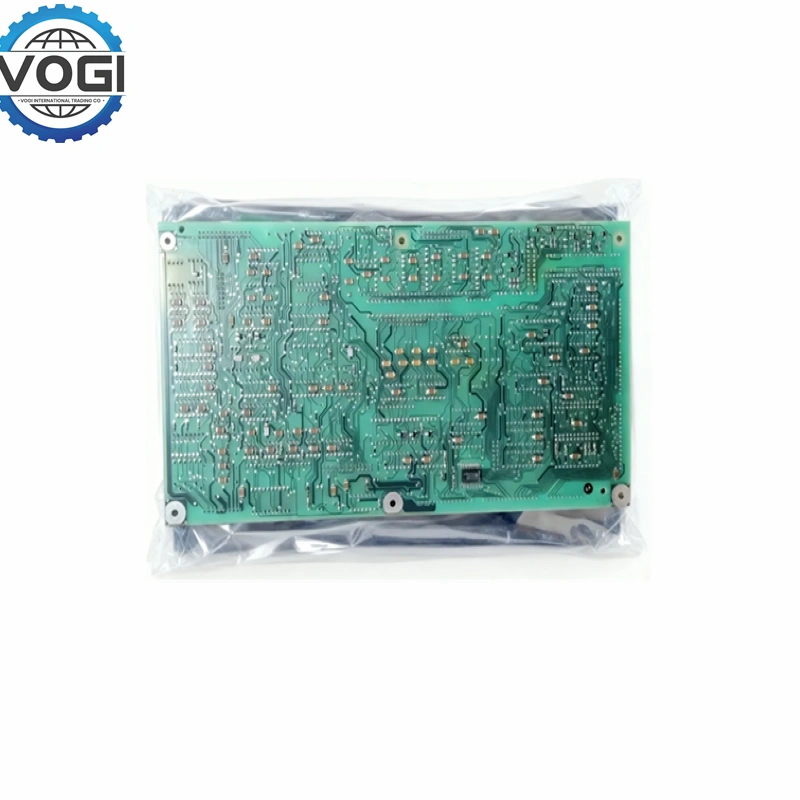

ABB YPQ101E YT204001-FS
| Brand | ABB |
| Model Number | YPQ101E YT204001-FS |
| Unit price | $4000 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 1KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 1 |
The YPQ101E and YT204001-FS are high-performance analog input advanced connectivity units in the ABB S800 I/O series. They are commonly used in industrial automation control systems to connect analog sensors and control modules, ensuring stable signal transmission and data processing.
| Item | Specification |
| Product Type | Analog Input Advanced Connection Unit |
| Adaptation System | ABB 800xA Industrial Automation System |
| Power Supply | 24V DC±20% |
| Resolution | 16 bit |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Precautions for use
Module Initialization and Fault Diagnosis
Upon installation, the module enters a startup diagnostic and initialization phase. Wait several minutes to observe its status. If the module is activated but the activation indicator remains off, or if the indicator displays a fault, replace the module promptly. Its on-site power status can be determined by the red dot indicator; absence of light indicates no power to the field circuit.
Power Supply and Circuit Protection
When connecting the power supply, strictly adhere to the rated range of 24V DC ±20% to prevent voltage anomalies from damaging the module. Regularly inspect the PWR1 and PWR2 power indicators. If the indicators do not display, promptly check the field power connection or verify the condition of the fuse on the ETP.
Installation and Wiring Specifications
This module employs a standardized design. Wiring must adhere to ABB S800 I/O series specifications to minimize wiring errors. During installation, prevent metal debris from entering the module interior. After wiring completion, secure all connections to prevent signal loss or module overheating due to poor contact.
Environmental Compatibility Requirements
Avoid prolonged exposure to environments with condensation, corrosive gases, or conductive dust, as these can cause pin corrosion and circuit shorting. Ensure the installation location facilitates adequate module heat dissipation.
Regular Maintenance and Diagnostics
For routine maintenance, wipe the module surface with a dry cloth; never use corrosive cleaning agents. Inspect the tightness of terminal connections quarterly. Utilize the FC215 and FC216 function codes to check if the module has reported faults. If a fault is detected, determine based on system configuration whether to allow the controller to continue operation or enter fault mode for troubleshooting.
