AE119 800-119-000-025 Housing expansion probe

Module Number AE119
Ordering Number 800-119-000-025(50mm)
800-119-000-112(100mm)
Unit Price $ 2400
Country Of Origin Switzerland
Weight 4.0 kg(50mm)
5.1 kg(100mm)
Certificate C/O from the Chamber of Commerce
C/Q from the manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

Electrical parameters​

Power supply: 20-32 VDC, maximum load resistance 500Ω.

Current consumption: Nominal 60 mA (24 VDC), maximum 70 mA.

Output signal: Linear current signal (4 mA corresponds to fully inserted rod, 20 mA corresponds to fully extended).

Performance indicators​

Accuracy: Linearity <1% FSD, resolution and repeatability <0.05% FSD.

Temperature drift: Zero point and sensitivity drift <150 ppm/°C.

Frequency response: Electrical 0-1000 Hz, mechanical 0-5 Hz.

Environmental adaptability​

Temperature range: Operating 0-80°C, Storage 0-100°C.

Vibration resistance: Radial 100g, axial 300g (complying with IEC 60068-2-27).

Spring force:

50 mm model: Initial force 30 N (rod extended), maximum force 73 N (rod inserted).

100 mm model: Initial force 20 N, maximum force 74 N.

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

AE119

AE119 Key features

Principle: Based on the eddy current effect (non-contact, wear-free).

Signal output: 4-20 mA two-wire current transmission, full scale corresponds to full extension of the rod (20 mA).

Models: Available in two measuring ranges of ​50 mm​ and ​100 mm​.

Protection rating: IP54 (dustproof and splashproof).

Integrated design: Built-in processing electronics, external power supply ​20-32 VDC required.



Model differences

​50 mm model: Scaled from "50 to 0 mm", light weight, higher initial spring force.

​100 mm model: Scaled from "100 to 0 mm", slightly higher weight, spring design better suited to longer travels.

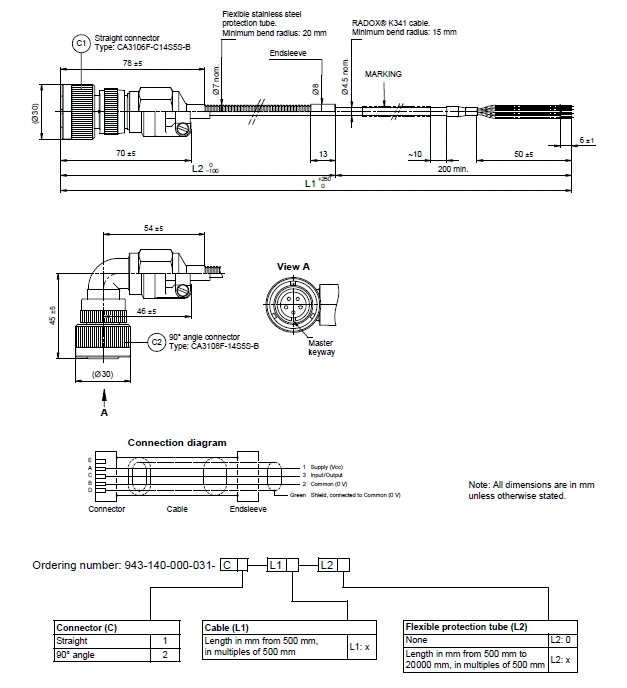

EH 140 cable assembly for AE 119

EH 140 cable assembly for AE 119
