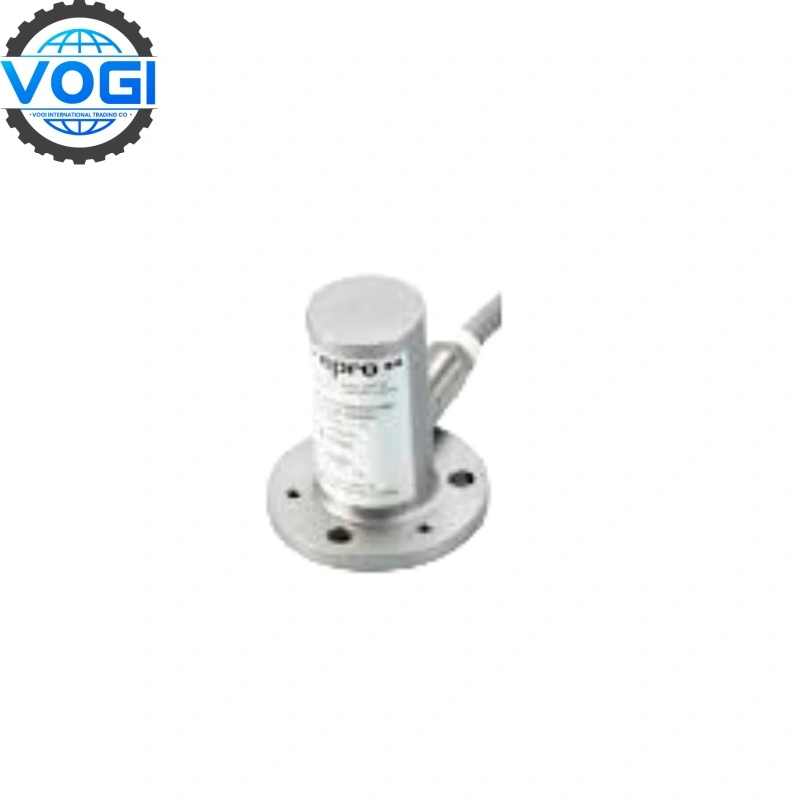

EPRO PR9268/602-000 Electrodynamic Horizontal Velocity Sensor
| Brand | EPRO |
| Module Number | PR9268/602-000 |
| Unit Price | $1500 |
| Country Of Origin | USA |
| Weight | 0.91KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The PR9268/602-000 is a specialized vibration sensor designed for continuous monitoring and protection of critical industrial machinery. It is extensively applied in power generation, oil and gas, and heavy manufacturing sectors to safeguard turbines, compressors, pumps, and fans by detecting excessive vibrational levels.
|
Parameter |
Value / Specification |
|
Model |
PR9268/602-000 |
|
Function |
Seismic Velocity Sensor |
|
Measuring Range |
0...100 mm/s |
|
Frequency Response |
4 Hz to 1000 Hz (±10%) |
|
Sensitivity |
20 mV/mm/s ± 5% |
|
Output Signal |
200 mV for 10 mm/s (RMS) |
|
Power Supply |
18...30 VDC |
|
Current Consumption |
< 20 mA |
|
Output Impedance |
< 100 Ohms |
|
Linearity |
< 1% Full Scale |
|
Dynamic Range |
> 80 dB |
|
Operating Temperature |
-30 °C to +120 °C |
|
Housing Material |
Stainless Steel |
|
Connection |
Integral 10-meter cable |
|
Protection Rating |
IP67 |
|
Mounting |
M10 x 1.5 threaded stud |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Details:
Product Features

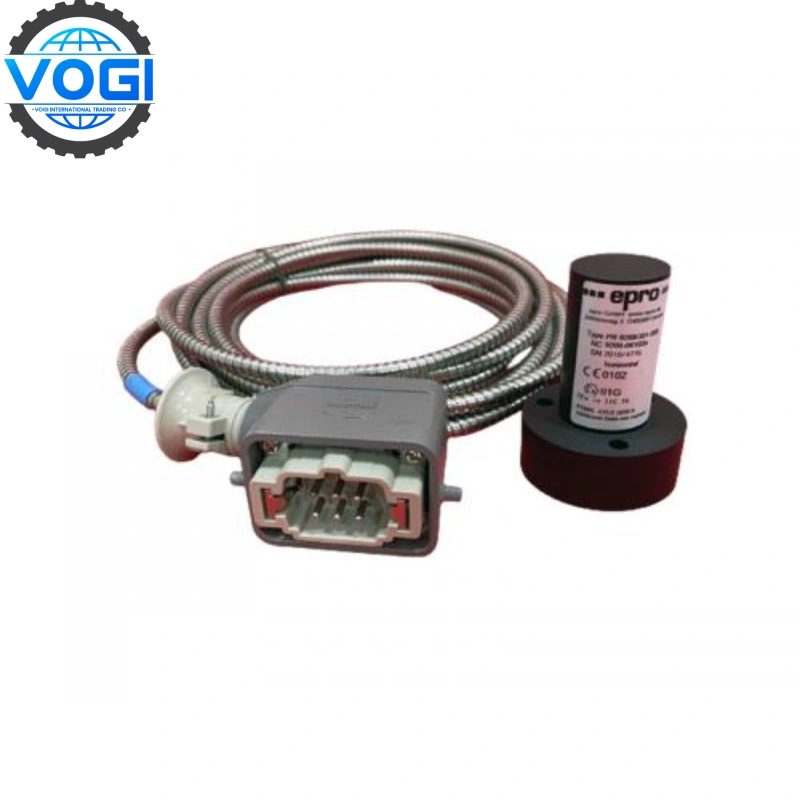

The PR9268/602-000 is renowned for its exceptional reliability in harsh operating environments. A key characteristic of the PR9268/602-000 is its robust stainless-steel housing, which ensures long-term performance even under extreme conditions. The self-generating operation of the PR9268/602-000 eliminates the need for an external power supply for the sensing element itself, simplifying system architecture. Furthermore, the integral 10-meter cable on the PR9268/602-000 provides significant installation flexibility and durability for permanent monitoring setups.
0301068B Comparison
When comparing the PR9268/602-000 to other vibration transducers, its specific characteristics define its optimal use cases. Unlike piezoelectric accelerometers, which require external power and integrate acceleration to get velocity, the PR9268/602-000 directly outputs a velocity-proportional signal, making it inherently less susceptible to signal noise and simplifying data acquisition. Compared to the PR9268/600-000 model, the PR9268/602-000 features a significantly longer integral 10-meter cable, whereas the former often has a shorter cable or a connectorized version. This makes the PR9268/602-000 a more practical and cost-effective choice for large machinery where long cable runs are necessary, reducing the need for potentially unreliable junction points. Therefore, while other models exist for velocity measurement, the PR9268/602-000 is often the preferred choice for its integrated, rugged solution.
0301068Bapplication cases
