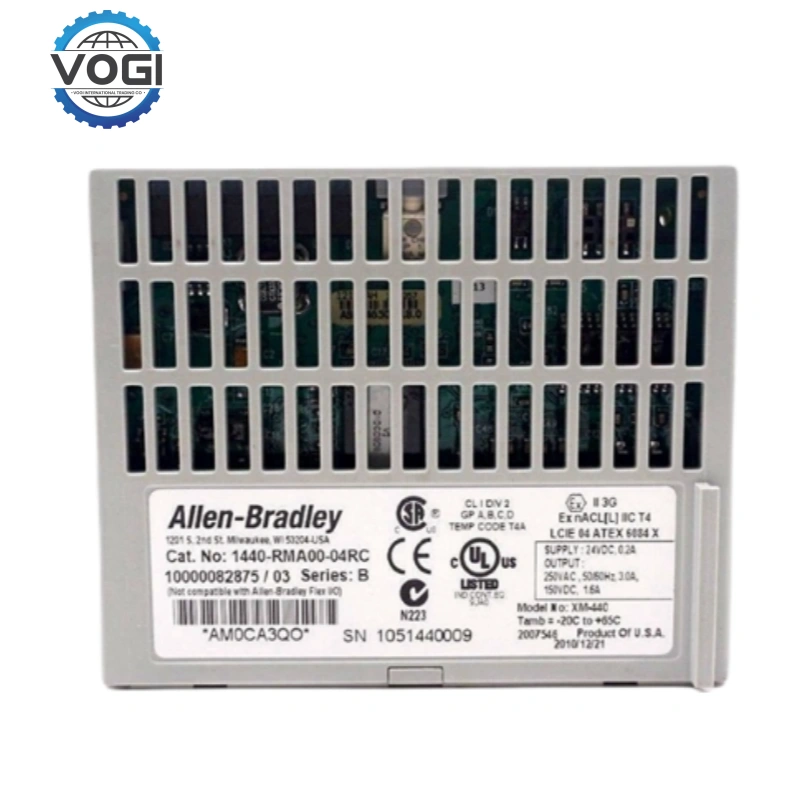

Rockwell Allen-Bradley 1440-RMA00-04RC
| Brand | Allen-Bradley |
| Model Number | 1440-RMA00-04RC |
| Unit price | $2999 |
| Country Of Origin | USA |
| Weight | 0.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 1 |
Allen-Bradley 1440-RMA00-04RC is XM-440 Master Relay Module, it supports linking of one or two XM-441 expansion relays to provide a capacity of up to 12 relays.
|
Parameter |
Specification |
|
Consumption |
200 mA, max |
|
Heat production |
3.4 W (11.6 BTU/hr), max |
|
Temperature, storage |
-40…85 °C (-40…185 °F) |
|
Conformal coating |
All printed circuit boards are conformally coated in accordance with IPC-A-610C |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Wiring Requirements
Use solid or stranded wire. All wiring should meet the following specifications:
- 14 to 22 AWG copper conductors without pretreatment; 8 AWG required for grounding the DIN rail for electromagnetic interference (emi) purposes
- Recommended strip length 8 millimeters (0.31 inches)
- Minimum insulation rating of 300V
- Soldering the conductor is forbidden
- Wire ferrules can be used with stranded conductors; copper ferrules recommended
